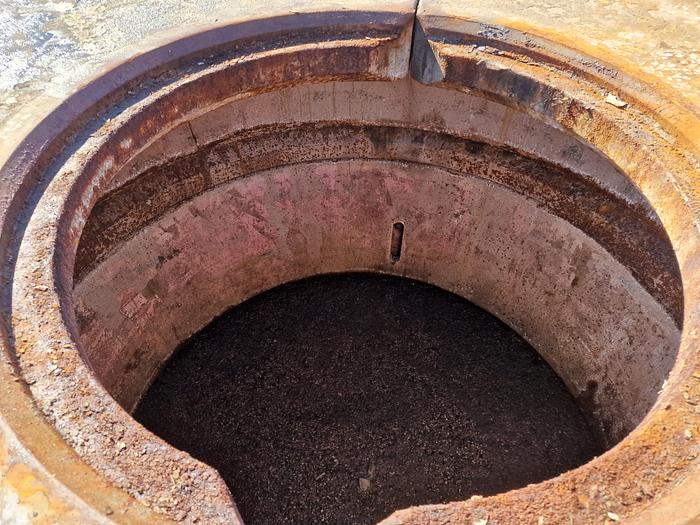

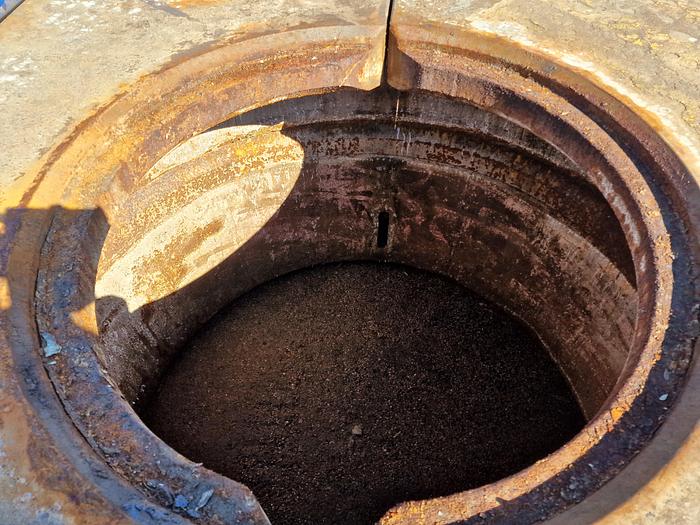

Riser Spider Gimbal

The spider serves as a hangoff point for the riser during BOP running.

This is a split spider and gimbal to accommodate rotary tables of 49.5-in diameter and is qualified up to 2,500,000-lbf hangoff capacity.

Our spiders is designed so that the only moving parts are the spider dogs.

For improved safety, the 75.5-in spider dogs completely cover the open hole when hanging off a riser joint.

The shock mount gimbal allows up to a 5° movement in all directions.
